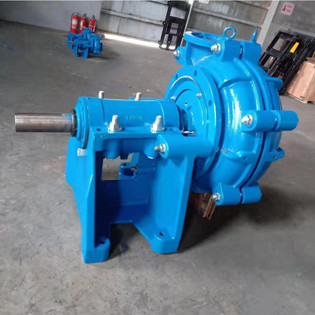

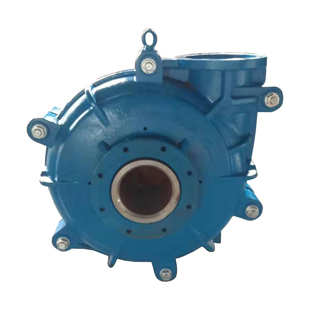

Pump Model: SH/150F (8/6F-AH)

SH/150F is equivalent to 8/6F-AH, a 6” discharge slurry pump, which is widely used for abrasive and robust slurry applications. SH/150F is horizontal centrifugal type heavy duty slurry pump. It is used to handle tailings in various mining sectors. Plus, it can also be used to feed cyclones for sand washing plants, quarries, etc. SH is high wear-resistant pump series for the hydraulic conveyance of liquids-solids of any type. It’s wet-end spare parts are made of high chrome alloy, a kind of highly abrasion and erosion resistant white iron, similar to ASTM A532.

Material Construction:

Part DescriptionStandardAlternative
ImpellerA05A33, A49
Volute LinerA05A33, A49
Front LinerA05A33, A49
Back LinerA05A33, A49
Split Outter CasingsGrey IronDuctile Iron
ShaftCarbon SteelSS304, SS316
Shaft SleeveSS304SS316, Ceramic, Tungstan Carbide
Shaft SealExpeller SealGland Packing, Mechanical Seal
BearingsZWZ, HRBSKF, Timken, NSK etc.

Applications:

Waste Utilisation; Sewage Water; Ash Transport; Bentonite Conveying; Ore Mining; Filter Press; Kaolin Mining etc.

Specifications:

Flowrate: 360-828m3/hr; Head: 10-61m; Speed: 500-1140rpm; Bearing Assembly: F005M

Impeller: 5-Vane Closed Type with Vane Diameter: 510mm; Max. Passage Size: 63mm; Max. Efficiency: 72%

(Optional Impeller: 6-Vane Impeller, Closed Type, Vane Diameter: 545mm with Max. Passage Size 50mm)



8-6F-AH

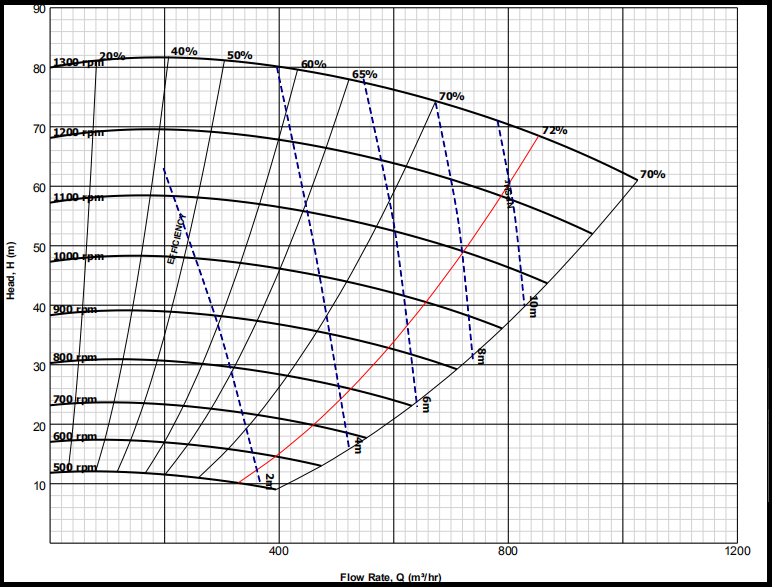

Performance Curve with Standard Impeller, Metal F6147A05:
