Pump Model: SM/200E (10/8E-M)

SM/200E is equivalent to 10/8E-M, a 8” discharge slurry pump designed for medium duty sludge applications. It’s wet-end spare parts are made of high chrome alloy, a kind of highly abrasion and erosion resistant white iron, similar to ASTM A532.

Advantage Compared with SH Heavy Duty Slurry Pumps:

1. Lighter in Weight; 2. Smaller in Physical Size; 3. Driven by Smaller Electric Motor.

Material Construction:

Part DescriptionStandardAlternative
ImpellerA05A33, A49
Volute LinerA05A33, A49
Front LinerA05A33, A49
Back LinerA05A33, A49
Split Outter CasingsGrey IronDuctile Iron
ShaftCarbon SteelSS304, SS316
Shaft SleeveSS304SS316, Ceramic, Tungstan Carbide
Shaft SealExpeller SealGland Packing, Mechanical Seal
BearingsZWZ, HRBSKF, Timken, NSK etc.

Applications:

Mining and Mineral Processing; SAG and AG Mill Discharge Recirculation Duties; Cyclone Feed; Mine Refuse and Tailings;

Industrial Processing; Coal and Power Plant Ash; Sand and Gravel; Mining Duty Abrasive Slurries etc.

Specifications:

Pump ModelOEM ModelBase TypeBearing AssemblyPower (Kw)Flow(m3/h)Head(m)Speed(rpm)Max.Effi.
SM/200E10/8E-MEEAM005M120

666-1440

14-60

600-1100

73%

SM/200F10/8F-MFF005M260
SM/200R10/8R-MRR005M300

微信图片_20190527104331

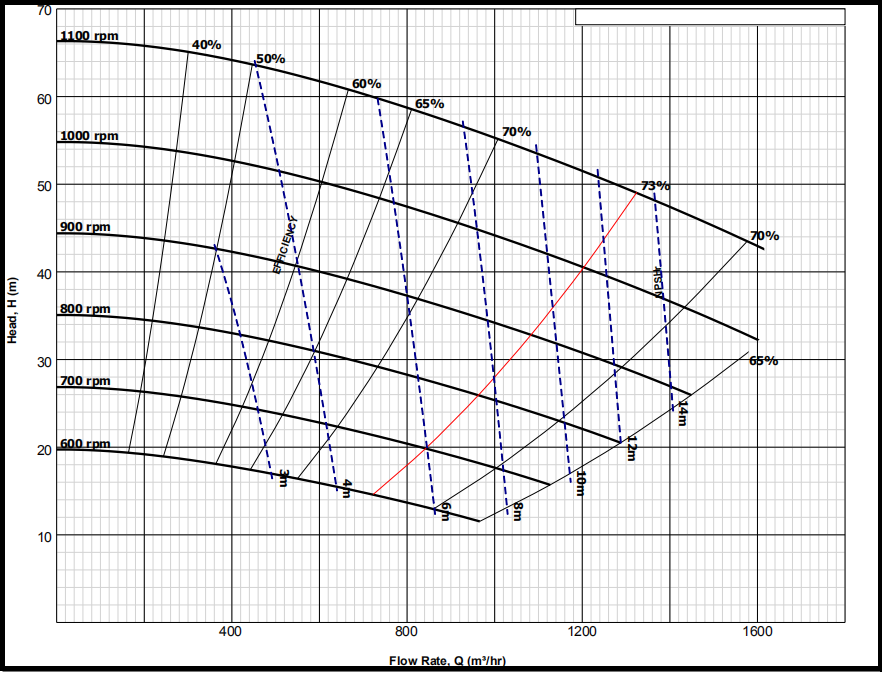

Performance Curve with Standard Impeller, Metal F8147A05:

Performance Curve
