Heavy Duty Slurry Pumps Model: 250ST (12/10ST-AH) Material Construction: Part Description Standard Alternative Impeller A05 A33, A49 Volute Liner A05 A33, A49 Front Liner A05 A33, A49 Back Liner A05 A33, A49 Split Outter Casings Grey Iron Ductile Iron Shaft Carbon Steel SS304, SS316 Shaft Sleeve SS304 SS316, Ceramic, Tungstan Carbide Shaft Seal Expeller Seal Gland Packing, Mechanical Seal Bearings ZWZ, HRB SKF, Timken, NSK etc. Applications of 10” Heavy Duty ...

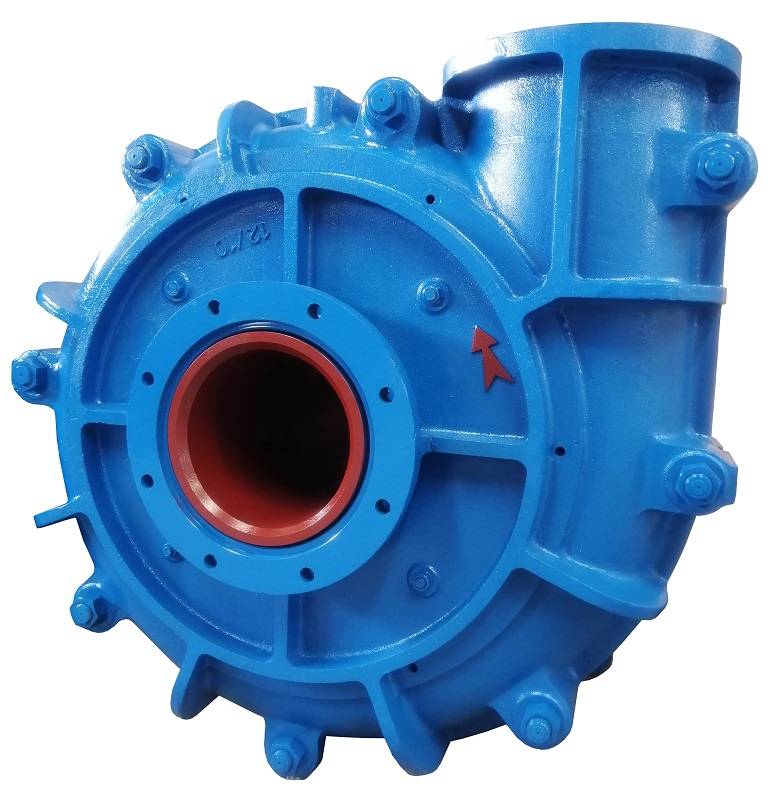

Pump Model: 250ST (12/10ST-AH)
Material Construction:
| Part Description | Standard | Alternative |
| Impeller | A05 | A33, A49 |
| Volute Liner | A05 | A33, A49 |
| Front Liner | A05 | A33, A49 |
| Back Liner | A05 | A33, A49 |
| Split Outter Casings | Grey Iron | Ductile Iron |
| Shaft | Carbon Steel | SS304, SS316 |
| Shaft Sleeve | SS304 | SS316, Ceramic, Tungstan Carbide |
| Shaft Seal | Expeller Seal | Gland Packing, Mechanical Seal |
| Bearings | ZWZ, HRB | SKF, Timken, NSK etc. |
Applications:
Mining Industry; Minerals Processing; Tailings Disposal; Fly Ash; Bottom Ash; Sludge and Slurry etc.
Specifications:
Flowrate: 936-1980m3/hr; Head: 7-68m; Speed: 300-800rpm;
Impeller: 5-Vane Closed Type with Vane Diameter: 762mm
Max. Passage Size: 86mm; Max. Efficiency: 82%
